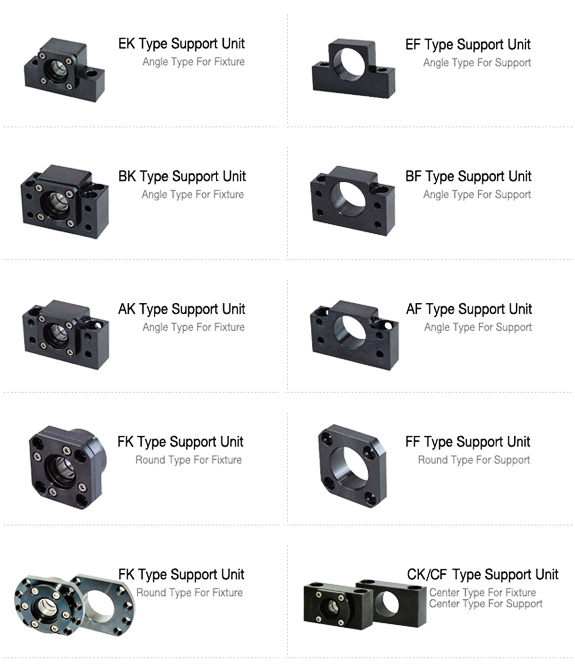

Support Unit for Ball Screw
Support Unit for Ball Screw : Sungil Machinery
![sungil-01.png](https://static.wixstatic.com/media/8accf8_a3838fe1e8cd4a0db9b2811a30c56bc6~mv2.png/v1/fill/w_133,h_61,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/sungil-01.png)
ตัวแทนจำหน่าย Support Unit for Ball-screw ยี่ห้อ Sungil Machinery
-
High accuracy, no need of additional adjustment
-
Handy application design by standardized bearings
-
Easy installation even at small and narrow areas
-
With the inner oil seal ring, it prevents foreign material and leak of grease
Download Ballscrew Support : 3D CAD File
![Support Unit for Ball-screw.png](https://static.wixstatic.com/media/8accf8_9ed6a85216484886aba7d7434896fd2e~mv2.png/v1/fill/w_413,h_275,al_c,q_85,usm_0.66_1.00_0.01,enc_auto/Support%20Unit%20for%20Ball-screw.png)
Structure
![Structure Fieed Side Support Unit-01.png](https://static.wixstatic.com/media/8accf8_b973ec9668d74dde816de1f512abbca6~mv2.png/v1/fill/w_103,h_75,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Structure%20Fieed%20Side%20Support%20Unit-01.png)
Fixed Side
-
DF arrangement of angular contact ball bearing combinations
-
Full ranges with high accuracy without runout according to adequate preload given in advance
-
Prevention of foreign material and leak of grease by the inner oil-seal rings
-
Accompanied by a high accuracy lock-nut and collars (spacer)
Supported Side
![Structure Supported Side Support Unit Ball-screw-01.png](https://static.wixstatic.com/media/8accf8_1a16f83bc2e44a21b801662607591c9a~mv2.png/v1/crop/x_0,y_0,w_923,h_658/fill/w_114,h_81,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Structure%20Supported%20Side%20Support%20Unit%20Ball-screw-01.png)
-
Accompained by a deep-groove ball bearing and a snap-ring
How To Order
![Fixed Side Support Unit-01.png](https://static.wixstatic.com/media/8accf8_2ca714cb510343f0805c6945cc98d1f4~mv2.png/v1/fill/w_110,h_39,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Fixed%20Side%20Support%20Unit-01.png)
![Fixed Side Ball-screw-01.png](https://static.wixstatic.com/media/8accf8_a4b562fb6eba4137b6047a29e692b421~mv2.png/v1/fill/w_96,h_29,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Fixed%20Side%20Ball-screw-01.png)
![Supported Side Support Unit-02-01.png](https://static.wixstatic.com/media/8accf8_2ed583d2d5764805ba5d87cb9e4e9177~mv2.png/v1/fill/w_96,h_28,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Supported%20Side%20Support%20Unit-02-01.png)
![Supported Side Support Unit-01.png](https://static.wixstatic.com/media/8accf8_6642cfb2ff58428ab953ae14747205d8~mv2.png/v1/fill/w_110,h_39,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Supported%20Side%20Support%20Unit-01.png)
![Supported Side Support Unit-02-01.png](https://static.wixstatic.com/media/8accf8_2ed583d2d5764805ba5d87cb9e4e9177~mv2.png/v1/fill/w_96,h_28,al_c,q_85,usm_0.66_1.00_0.01,blur_2,enc_auto/Supported%20Side%20Support%20Unit-02-01.png)
